It is prevent break down and a rase durability, cost reduction because it filtering
the foreign matter within screen inter valve. Generally used to high price valve,
high price pump and important equipment. . |
¡Ü FEATURE
1) Pressure drop have little more than at fluid through area wild.
2) Suitability at high temperature and pressure.
3) Compact and easy installed.
4) Easy maintenance
|
¡Ü Specification |
| Model |
KYS-YT |
KYS-HP |
| Type |
"Y" |
| Applicable Fluids |
Air, Steam, Liquid |
| Applicable Press. / Temp |
20 kgf/cm2 220¡ÆC |
40 kgf/cm2 220¡ÆC |
| Material |
Body |
Ductile Cast Iron, Bronze, Cast Steel |
Cast Steel |
| Trim |
Stainless Steel |
| Mesh(Screen) |
20, 40, 60, 80, 100 |
| Size |
15~300 mm |
15~50 mm |
|
| |

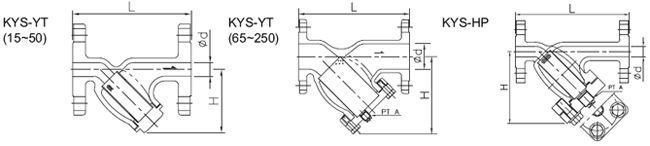

| ¡Ü Dimensions |
| (mm) |
| Model |
Size
mm(inch) |
d |
L |
H |
PTA |
Weight
(Kg) |
| KYS-YT |
15(1/2") |
15 |
126 |
90 |
- |
2 |
| 20(3/4") |
20 |
130 |
90 |
- |
3 |
| 25(1") |
25 |
150 |
105 |
- |
4 |
| 32(1 1/4") |
32 |
165 |
105 |
- |
5 |
| 40(1 1/2") |
40 |
180 |
120 |
- |
7 |
| 50(2") |
50 |
200 |
145 |
- |
8 |
| 65(2 1/2") |
65 |
260 |
185 |
PT 3/8" |
11 |
| 80(3¡±) |
80 |
290 |
215 |
PT 3/8" |
10 |
| 100(4¡±) |
100 |
350 |
270 |
PT 1/2" |
25 |
| 125(5¡±) |
125 |
410 |
325 |
PT 1/2" |
37 |
| 150(6¡±) |
150 |
460 |
350 |
PT 1/2" |
54 |
| 200(8¡±) |
200 |
542 |
420 |
PT 3/4" |
75 |
| 250(10¡±) |
250 |
680 |
525 |
PT 3/4" |
130 |
| 300(12¡±) |
300 |
848 |
792 |
PT 1" |
220 |
| KYS-HP |
15( 1/2¡±) |
15 |
220 |
140 |
PT 3/8" |
8 |
| 20(3/4") |
20 |
220 |
140 |
PT 3/8" |
9 |
| 25(1") |
25 |
240 |
170 |
PT 3/8" |
11 |
| 32(1 1/4") |
32 |
315 |
180 |
PT 3/8" |
15 |
| 40 (1 1/2") |
40 |
315 |
180 |
PT 3/8" |
16 |
| 50(2") |
50 |
355 |
213 |
PT 3/8" |
18 |
|
Notes
1. Also available in JIS, DIN and ANSI. For all other standards please consult factory.
2. Weights(Ductile Cast Iron) are approximate and applied JIS 10K.
3. The flanges shall conform by JIS B2210. |
 |
| |
|
|
