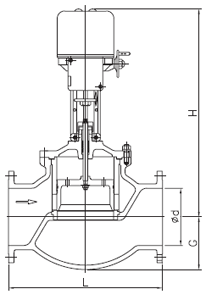

It is designed to use to convert flow rate fluids and/or keep available temperature and/or control the capacity of fluid in system. The actuator of operation part used Electric Motor type. So the installation is easy. The trim part designed proportion control case type. Also it is balance type. And it is proportion control type valve. That’s why it can control accuracy. ● FEATURE 1) Installed is easy at operation only electric supply is required. 2) Size is small because of balance construction of trim parts. 3) The capacity is large 4) Emergency operating is possible to use emergency handle devices. 5) Precision control is possible because it is proportion control type ● Specification Model K2C-MO Type Electric Motor Applicable Fluids Steam, Water, Oil Applicable Press. / Temp 16 kgf/cm2 220°C Power supply / Input Signal 220V, 110V / 4~20mA Material Body Ductile Cast Iron, Bronze, Cast Steel Trim Stainless Steel Flow characteristics Equal Percentage, Linear, Quick opening Rangeability 30 : 1 / 50 : 1 Size 15~300 mm Accessories (Option) ●Controller(P.I.D) ●Sensor(Press., Temp.) ●Control Box   ● Dimensions (mm) Size mm(inch) d L H G Weight (Kg) 15(1/2") 15 136 450 58 18 20(3/4") 20 140 450 58 20 25(1") 25 150 460 63 23 32(1 1/4") 32 190 470 69 25 40(1 1/2") 40 190 470 69 26 50(2") 50 200 475 82 29 65(2 1/2") 65 230 485 92 46 80(3") 80 262 505 125 53 100(4") 100 350 1050 350 75 125(5") 125 390 1050 350 102 150(6") 150 451 1200 400 125 200(8") 200 543 1450 550 158 250(10") 250 661 1450 550 185 300(12") 350 737 1450 550 240 Notes : 1. Also available in JIS, DIN and ANSI. For all other standards please consult factory. 2. Weights( Cast Steel) are approximate and applied JIS 10K. 3. The flanges shall conform by JIS B2210.
