These models are consist of valve and sensor, It is proportion control valve
and it is
operated by set temperature for the fluid temperature regulating.
This valve will install with our company¡¯'s "Heat sensor (AHS series)¡±.
The valves are for heating purpose and be used on hot water tanks, heat
exchangers and heavy oil heating on vessels. |
¡Ü FEATURE
1) The installation is very simple.
2) Simply construction and semi-permanent with less malfunction.
3) Being self-control type, so an auxiliary power is not required.
4) Operating can be used under the condition of high / differential pressure.
5) Pilot type has considerably large capacity. (KTR-PL)
6) The temperature variation is small, so it can be controlled precision.
7) This is proportion control type valve by temperature change.
8) The manual handle which is used for both Emergency handle and
bypass is provided.
|
¡Ü Specification |
| Model |
KTR- DT |
KTR-BL |
KTR-PL |
| Type |
Direct |
Balance |
Pilot |
| Applicable Fluids |
Steam, Hot Water, Thermal Oil |
| Applicable Press. / Temp |
10kgf/cm2 / 220¡ÆC |
16kgf/cm2 / 220¡ÆC |
| Material |
Body |
Ductile Cast Iron, Bronze, Cast steel |
| Trim |
Stainless Steel |
| Size |
15~25mm |
32~50mm |
65~125mm |
| Accessories |
¡Ü Temperature Sensor ¡Ü By-Pass Handle(Option) |
|
| |

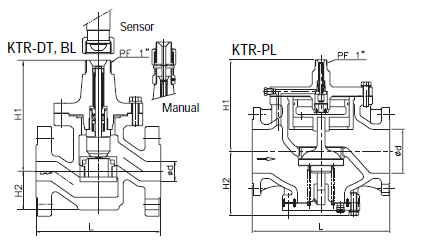

| ¡Ü Dimensions |
|
|
| Model |
Size
mm(inch) |
d |
L |
H1 |
H2 |
Weight
(Kg) |
| KTR-DT |
15(1/2") |
15 |
136 |
140 |
58 |
8 |
| 20(3/4") |
20 |
140 |
140 |
58 |
10 |
| 25(1") |
25 |
150 |
152 |
63 |
13 |
| KTR-BL |
32(1 1/4") |
32 |
190 |
185 |
79 |
17 |
| 40(1 1/2") |
40 |
190 |
185 |
79 |
19 |
| 50(2") |
50 |
200 |
200 |
82 |
23 |
| KTR-PL |
65(2 1/2") |
65 |
230 |
280 |
92 |
26 |
| 80(3") |
80 |
310 |
235 |
150 |
43 |
| 100(4") |
100 |
350 |
268 |
171 |
53 |
| 125(5") |
125 |
390 |
273 |
183 |
65 |
|
| |
 |
| |
|
|
