¡Ü FEATURE
1) Large capacity have compared with equal size.
2) Size small and Installed easy
3) Emergency operating is possible with emergency handle devices.
4) Correctness temperature maintenance
5) Installed is easy at operation only electric supply. |
| |
| ¡Ü Specification |
| Model |
K3R-MO |
| Type |
Electric Motor |
| Applicable Fluid |
Water, Oil |
| Applicable Press. / Temp. |
Max.10 kgf/cm©÷ / 120¡É |
| Power Supply / Input Signal |
110V, 220 V / 4~20mA |
| Operation |
Dividing |
(A) Inlet / (B) By-Pass / (C) Cooler |
| Mixing |
(A) Oulet / (B) By-Pass / (C) Cooler |
| Material |
Body |
Ductile Cast Iron, Bronze |
| Trim |
Bronze / Stainless Steel |
| Rangeability |
30 : 1 |
| Flow characteristics |
Linear |
| Size |
80 ~ 600mm |
| Accessories (Option) |
¡ÜE/P Controller(P.I , P.I.D) ¡ÜSensor(Temp.) |
|
| |
| |

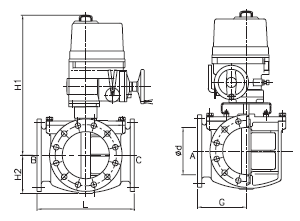

| ¡Ü Dimensions
|
| (mm) |
| |
Size
mm(inch) |
d |
L |
G |
H1 |
H2 |
Weight
(Kg) |
| 80(3¡±) |
80 |
272 |
136 |
470 |
145 |
50 |
| 100(4¡±) |
100 |
296 |
148 |
483 |
145 |
58 |
| 125(5¡±) |
125 |
332 |
166 |
483 |
170 |
84 |
| 150(6¡±) |
150 |
362 |
181 |
497 |
180 |
108 |
| 200(8¡±) |
200 |
446 |
223 |
530 |
220 |
148 |
| 250(10¡±) |
250 |
216 |
258 |
550 |
260 |
204 |
| 300(12¡±) |
300 |
296 |
298 |
571 |
272 |
292 |
| 350(14¡±) |
350 |
706 |
353 |
600 |
285 |
358 |
| 400(16") |
400 |
820 |
410 |
710 |
388 |
495 |
| 450(18¡±) |
450 |
960 |
480 |
760 |
388 |
615 |
| 500(20¡±) |
500 |
1024 |
512 |
800 |
470 |
730 |
| 550(22¡±) |
550 |
1090 |
545 |
1000 |
590 |
1150 |
| 600(24¡±) |
600 |
1200 |
600 |
1250 |
690 |
1310 |
|
Notes :
1. Also available in JIS, DIN and ANSI. For all other standards please consult factory.
2. Weights(Ductile Cast Iron) are approximate and applied JIS 10K.
3. The flanges shall conform by JIS B2210. |
|
|
 |
| |
