¡Ü FEATURE
1) Simply construction and installed easy
2) No leakage and strongly
3) Emergency operating is possible with emergency handle devices.
4) Valve has large capacity |
| |
| ¡Ü Specification |
| Model |
KCY-HA |
KCY-YK |
| Type (Spring Return) |
Cylinder |
| Applicable Fluid |
Water, Steam, Oil |
| Applicable Press. / Temp. |
5 kgf/cm©÷ / 160¡É |
10 kgf/cm©÷ / 220¡É |
| Air supply Pressure |
5~7 kgfcm/©÷ |
| Operation (Air fail) |
Closed |
Closed/Open |
| Material |
Body |
Ductile Cast Iron, Bronze |
| Trim |
Stainless Steel |
| Size |
15~50 mm |
65~200mm |
| Accessories (Option) |
¡ÜSolenoid valve ¡ÜLimit switch ¡ÜAir set. |
|

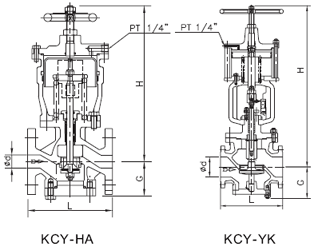

| |
| ¡Ü Dimensions(KSF-VS) |
| (mm) |
| Model |
Size
mm(inch) |
d |
L |
G |
H |
Weight
(Kg) |
| KCY-HA |
15(1/2") |
15 |
154 |
60 |
295 |
17 |
| 20(3/4") |
20 |
158 |
83 |
295 |
18 |
| 25(1") |
25 |
160 |
64 |
295 |
22 |
| 32(1 1/4 ") |
32 |
190 |
83 |
295 |
25 |
| 40(1 1/2") |
40 |
190 |
83 |
295 |
29 |
| 50(2") |
50 |
220 |
85 |
295 |
32 |
| KCY-YK |
65(2 1/2") |
65 |
290 |
158 |
830 |
62 |
| 80(3") |
80 |
310 |
190 |
862 |
75 |
| 100(4") |
100 |
350 |
218 |
960 |
107 |
| 125(5") |
125 |
390 |
224 |
994 |
147 |
| 150(6") |
150 |
451 |
273 |
1043 |
178 |
| 200(8") |
200 |
543 |
273 |
1043 |
230 |
|
| |
¡Ü Dimensions(K3B-VS)
|
| (mm) |
| |
Size
mm(inch) |
d |
L |
G |
D |
H1 |
H2 |
Weight
(Kg) |
| 65(2 1/2 ") |
65 |
250 |
125 |
210 |
230 |
130 |
45 |
| 80(3") |
80 |
262 |
131 |
210 |
236 |
133 |
55 |
|
Notes :
1. Also available in JIS, DIN and ANSI. For all other standards please consult factory.
2. Weights(Ductile Cast Iron) are approximate |
|
|
 |
| |
