This sensor is temperature proportion type. The sensor part sense the temperature, and the liquid will expands or
contracts
by the temperature change. It can operate the main shaft stem in the sensor pocket and It¡¯'ll make a valve
open/close by this
working. This item usually used to Temperature Regulating valve by Korval.
|
¡Ü FEATURE
- AHS-BT : This type is that the temperature control part is on the sensor part and only use liquid. Standard type.
- AHS-BV : It is possible to set the temperature on the valve and it can free to use based on location of sensing system
establishment. It is liquid only.
- AHS-CT : It is possible to set the temperature on the valve and it react sensitive , only use air.

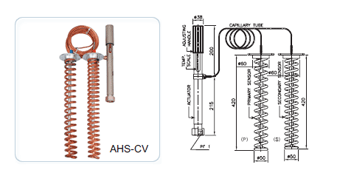

- AHS-CV : It is possible to set the temperature on the valve, it can do accuracy set temperature because of dual sensor
therefore it can cover the temperature change, only use air. Usually it used on place of wide
temperature change.
|
 |
 |
 |
 |
¡Ü Specification
| Model |
AHS-BT |
AHS-BV |
AHS-CT |
AHS-CV |
AHS-WA |
| Heated Fluids |
Water, Oil, Liquid |
Air, Gas |
Water, Oil |
| Adjust Temp.Range(¡É) |
0~60, 50~110, 80~140 |
0~60, 20~80 |
20~96 |
| Capillary Tube Length(m) |
3, 5, 7, 8 ~ 15(Option) |
5(p)+7(s),7(p)+10(s) |
Internal Sensor |
| Accessories |
¡Ü Sensor Pocket |
- |
|
| |
|
|
