When the over press occurred in the line by load change.
This valve operate to keep the pressure in the line and/or protect the piping line from
the damage by over pressure and/or operate By-pass function to keep the primary
pressure in the main line.
It is external type, and an auxiliary power is not required and it can operate under
high
temperature / pressure an/or liquid of high viscosity fluid condision.
KPP-CY : The operate part is balance type. So the influence of back pressure is
small and it can control precision by sensitive acting.
KPP-PL : This is cylinder pilot type. So it can operate by small power.
That¡¯s why the size of valve is smaller than other type.
It can use in this case. |
| |
| ¡Ü Specification |
| Model |
KPP-CY |
KPP-PL |
| Type |
Cylinder |
Pilot |
| Applicable Fluid |
Water, Liquid, Oil |
| Applicable Press. / Temp. |
16 kgf/cm©÷ / 150¡É |
20 kgf/cm©÷ / 150¡É |
| Material |
Body |
Ductile Cast Iron, Bronze, Cast Steel |
| Trim |
Stainless Steel |
| Size |
15~100 mm |
125~200 mm |
| Accessories (Option) |
¡ÜGlycerin port Pressure ¡Ü gauge unit |
|
| |
| |

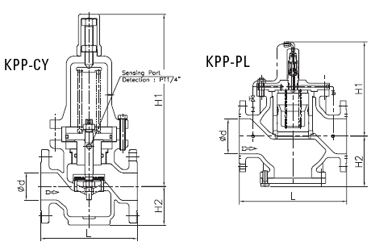

| ¡Ü Dimensions(K3B-VS)
|
| (mm) |
| |
| Model |
Size
mm(inch) |
d |
L |
H1 |
H2 |
Weight
(Kg) |
| KPP-CY |
15( 1/2 ") |
15 |
136 |
220 |
60 |
7 |
| 20(3/4") |
20 |
140 |
220 |
60 |
8 |
| 25(1") |
25 |
150 |
255 |
65 |
14 |
| 32(1 1/4") |
32 |
190 |
285 |
79 |
19 |
| 40(1 1/2") |
40 |
190 |
285 |
79 |
21 |
| 50(2") |
50 |
200 |
303 |
86 |
23 |
| 65(2 1/2") |
65 |
230 |
410 |
92 |
38 |
| 80(3") |
80 |
262 |
415 |
125 |
49 |
| 100(4") |
100 |
350 |
538 |
163 |
73 |
| KPP-PL |
125(5") |
125 |
390 |
395 |
185 |
86 |
| 150(6") |
150 |
456 |
405 |
216 |
129 |
| 200(8") |
200 |
543 |
445 |
242 |
135 |
|
Notes
1. Also available in JIS, DIN and ANSI. For all other standards please consult factory.
2. Weights(Ductile Cast Iron) are approximate and applied JIS 10K.
3. The flanges shall conform by JIS B2210. |
|
|
 |
| |
|
|
