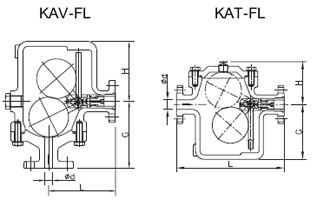

KAV-FL : Ball float type for liquids automatically discharges the air accumulated in the pipes or pressure vessels to smooth the flow of liquid service. ● FEATURE : 1) No chattering and water-hammer 2) No leakage and precise operation 3) Small size of course high capacity discharge. 4) Suitability at high temperature and pressure. 5) Stability performance for float type   KAT-FL : Ball float type for liquids automatically discharges the condensation water in the gas system. ● FEATURE : 1) Stability performance for float type 2) No trim damage by pressure balance type 3) Suitability at high temperature and pressure. easy installed .   ● Specification Model KAV-FL KAT-FL Type Ball Float Applicable Fluids Water, Oil Compressed Air Applicable Press. / Temp 16 kgf/cm2 150°C 30 kgf/cm2 150°C Material Body Ductile Cast Iron, Cast Steel Cast Steel Trim Stainless Steel Size 15~25 mm   ● Dimensions (mm) Model Size mm(inch) d L G H Weight (Kg)   15( 1/2 ”) 15 128 128 125 13 20(3/4") 20 130 130 125 15 25(1") 25 130 130 125 18   15( 1/2 ”) 15 226 125 130 13 20(3/4") 20 230 125 130 14 25(1") 25 230 125 130 15 Notes : 1. Also available in JIS, DIN and ANSI. For all other standards please consult factory. 2. Weights(Ductile Cast Iron) are approximate and applied JIS 10K. 3. The flanges shall conform by JIS B2210.
