This valve reduce the pressure from inlet high pressure to outlet low set pressure.
So it can keep the system¡¯s required pressure.
The valve is self-acting type.
KPR-CY : It is available used on both fluid & gas line. It is external sensor type.
It is an optimum of valve type to use under liquid of high viscosity
the maximum reducing rate is large and Simply construction
and semi-permanent
KPR-TU : fluid(liquid) only. The operating is pilot type so the capacity of
valve is large. It can use under high temp / press.
The operating part is small as used piping line size. |
| |
| ¡Ü Specification |
| Model |
KPP-CY |
KPP-PL |
| Type |
Cylinder |
Throttle Unit (Pilot) |
| Applicable Fluid |
Air, Water, Oil |
| Applicable Press. / Temp. |
20 kgf/cm©÷ / 150¡É |
| Max. Reducing Ratio |
10:1 |
| Material |
Body |
Ductile Cast Iron, Bronze, Cast Steel |
| Trim |
Stainless Steel |
| Size |
15~80 mm |
100~200 mm |
|
| |
| |

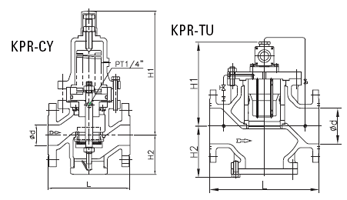

| ¡Ü Dimensions
|
| (mm)
|
| |
| Model |
Size
mm(inch) |
d |
L |
H1 |
H2 |
Weight
(Kg) |
| KPR-CY |
15( 1/2 ") |
15 |
136 |
220 |
60 |
7 |
| 20(3/4") |
20 |
140 |
220 |
60 |
8 |
| 25(1") |
25 |
150 |
255 |
65 |
14 |
| 32(1 1/4") |
32 |
190 |
285 |
79 |
19 |
| 40(1 1/2") |
40 |
190 |
285 |
79 |
21 |
| 50(2") |
50 |
200 |
303 |
86 |
23 |
| 65(2 1/2") |
65 |
230 |
410 |
92 |
38 |
| 80(3") |
80 |
262 |
415 |
125 |
49 |
| KPR-TU |
100(4") |
100 |
350 |
538 |
163 |
73 |
| 125(5") |
125 |
390 |
395 |
185 |
86 |
| 150(6") |
150 |
456 |
405 |
216 |
129 |
| 200(8") |
200 |
543 |
445 |
242 |
135 |
|
Notes :
1. Also available in JIS, DIN and ANSI. For all other standards please consult factory.
2. Weights(Ductile Cast Iron) are approximate and applied JIS 10K.
3. The flanges shall conform by JIS B2210. |
|
|
 |
| |
|
|
