¡Ü FEATURE
1) Maintenance is easy for main trans
2) No leakage and pressure drop
3) No damage by fluid supply instrument for open/close proportion type
4) It¡¯s balance type. So easy to transfer the direction.
5) Just one valve used on small space.
6) No leakage. |
| |
| ¡Ü Specification |
| Model |
KT3-RU |
| Type |
Rotary |
| Applicable Fluids |
Water, Oil |
| Applicable Press. / Temp |
18 kgf/cm2 80¡É |
| Material |
Body |
Ductile Cast Iron, Cast Steel |
| Trim |
Stainless Steel |
| Size |
100~200 mm |
|
| |

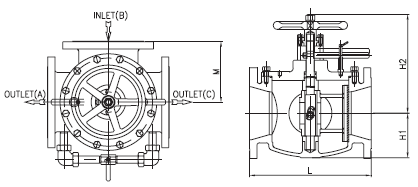

| ¡Ü Dimensions |
| (mm) |
Size
mm(inch) |
d |
L |
M |
H1 |
H2 |
Weight
(Kg) |
| 100(4") |
100 |
312 |
156 |
120 |
290 |
54 |
| 125(5") |
125 |
348 |
174 |
120 |
290 |
80 |
| 150(6") |
150 |
378 |
189 |
180 |
340 |
104 |
| 200(8") |
200 |
460 |
150 |
190 |
375 |
150 |
|
Notes :
1. Also available in JIS, DIN and ANSI. For all other standards please consult factory.
2. Weights(Ductile Cast Iron) are approximate and applied JIS 10K.
3. The flanges shall conform by JIS B2210. |
 |
| |
